FliteSim.com Dual-Linked Force Feedback Yoke and Rudder Pedals
Build Your Cockpit. Feel the Aircraft. Share the Controls.
Bring an authentic shared cockpit experience to your simulator with FliteSim.com’s Dual-Linked Force Feedback Yoke and Rudder Pedals. Designed for home cockpit builders and simulator manufacturers, this package puts linked control loading at the heart of your own cockpit design.
Two CLS-120 Force Feedback Yokes and two CLS-Rudder Pedals combine with dedicated connector kits to create a dual-linked control system for pilot and co-pilot positions. Linked controls allow both users to feel and respond to control inputs, adding a vital physical dimension to flight instruction, demonstrations, and shared cockpit flying.
FliteSim.com’s force feedback technology brings aircraft behaviour directly to your hands and feet. Feel changing aerodynamic loads, trim adjustments, autopilot backdrive, and turbulence through the yokes, complemented by responsive rudder resistance for coordinated flight, crosswind approaches, and ground handling.
Whether you are assembling a personal home cockpit or developing simulators for customers, this package gives you the freedom to build the surrounding flight deck around your project. Choose your own instruments, displays, throttle controls, and cockpit structure, with dual-linked force feedback as the foundation.
What’s Included
2 × CLS-120 Force Feedback Yokes (Customized for dual-link yoke operations)
2 × CLS-Rudder Pedals (Customized for dual-link rudder pedals operations)
1 × Yoke Connector Kit
1 × Rudder Pedals Connector Kit
One-Year Commercial License
Bring Your Cockpit to Life
From ambitious home builds to commercial simulator projects, create a more immersive flying experience with controls that let both pilots feel connected to the aircraft—and to each other’s inputs.
Dual-Linked Force Feedback Yokes & Rudder Pedals
Dual-Linked Force Feedback Yokes & Rudder Pedals

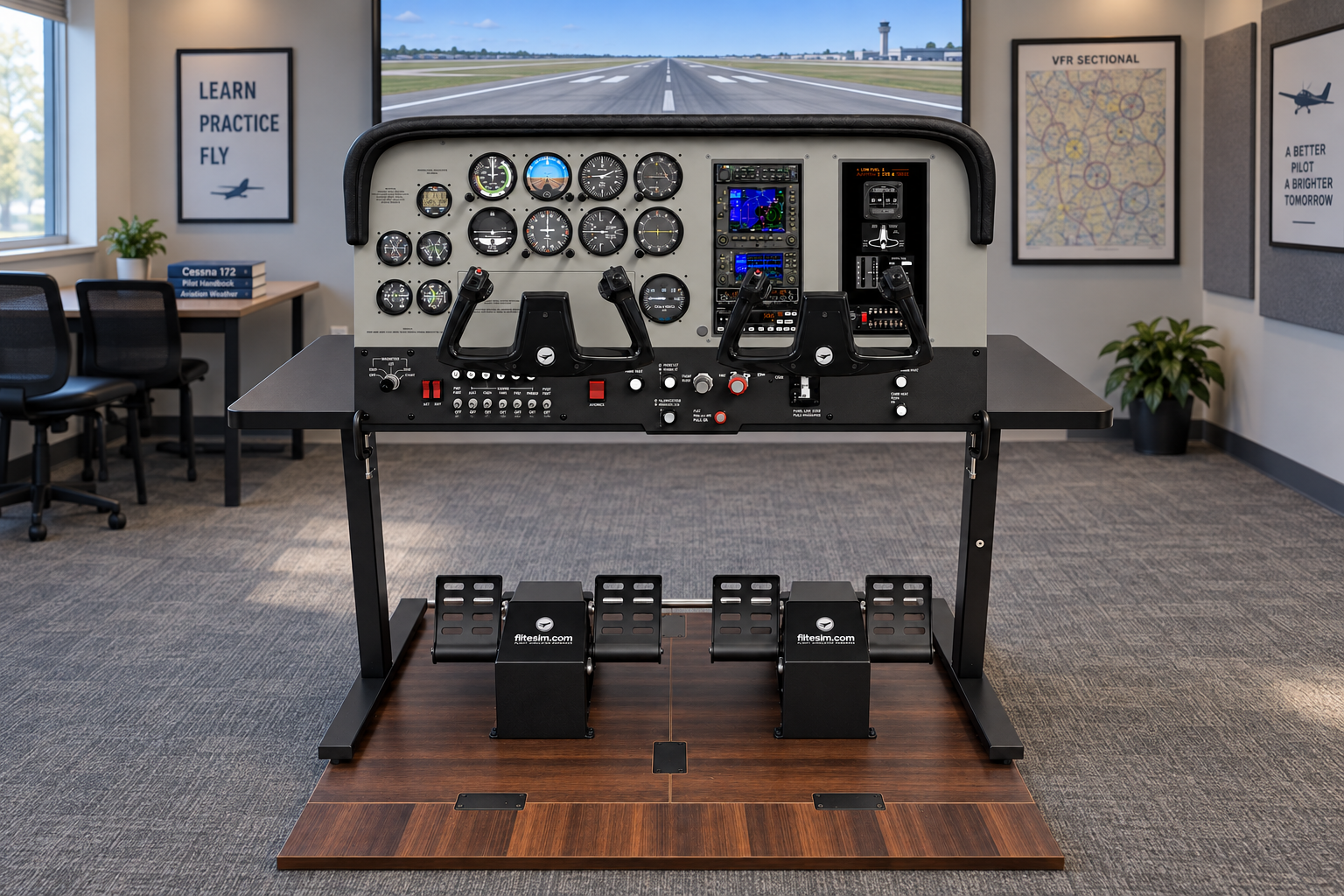

Installed in FliteSim.com Cessna 172 Analog Cockpit
Dual-Linked Force Feedback Yoke Setup
Dual-Linked Force Feedback Rudder Pedals Setup

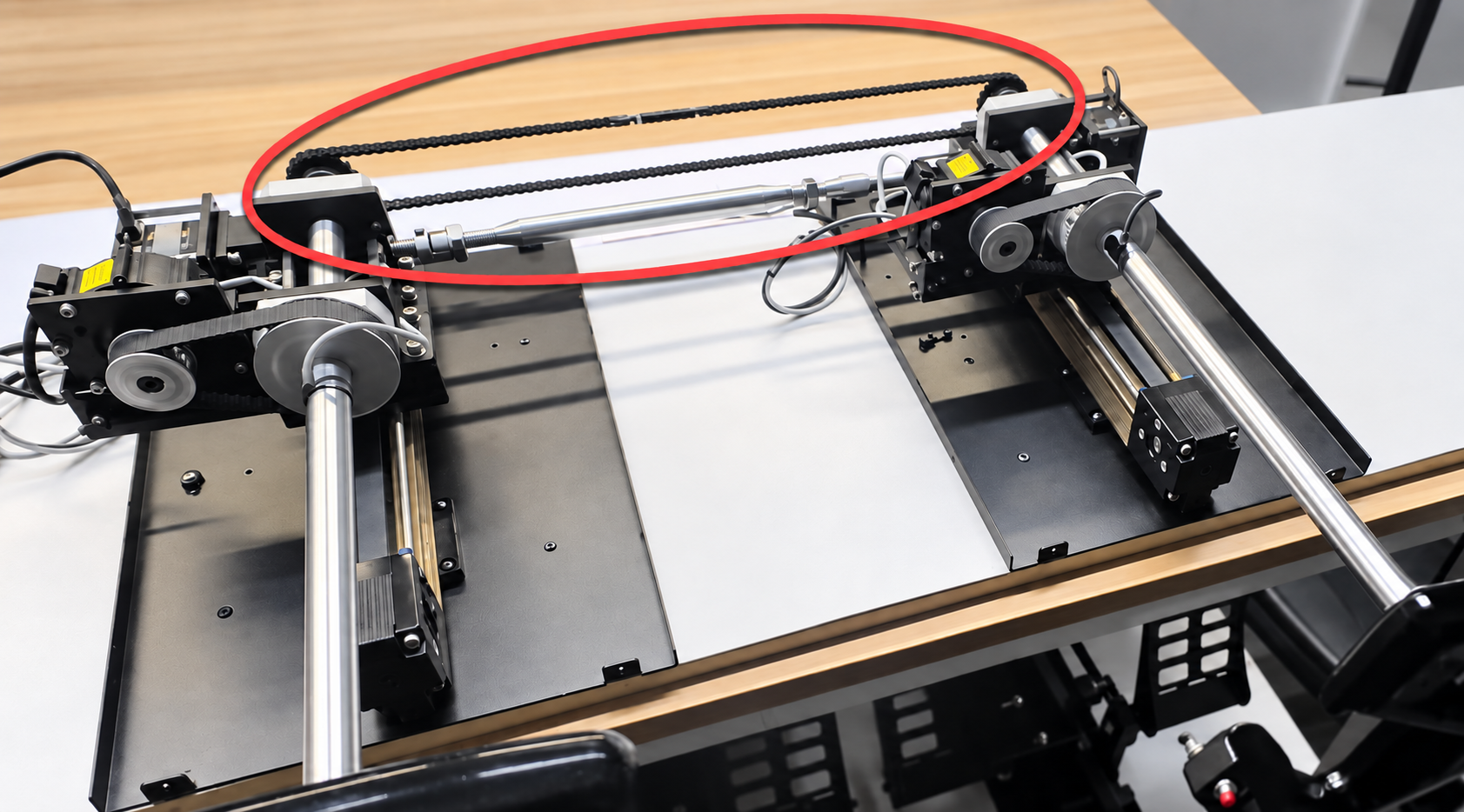

CLS-120 Dual-Linked FFB Yoke Connector System
(Requires Factory Modification)
The dual-linked CLS-120 force feedback yoke system is a factory-built system comprising two yoke mechanisms mounted on separate base frames. A synchronised mechanical linkage connects the two units so that both control columns move together in pitch and roll and deliver a coordinated force-feedback response.
Producing this configuration requires factory changes to the pitch and roll drive mechanisms, together with the installation and calibration of the connecting linkage. It is therefore not available as a modification or retrofit for an existing single CLS-120. A complete dual-linked system must be ordered and purchased new.
The centre-to-centre distance between the two yokes can be customised from 420 mm to 620 mm to suit the cockpit layout. This dimension must be specified when ordering so that the system can be manufactured and assembled accordingly.

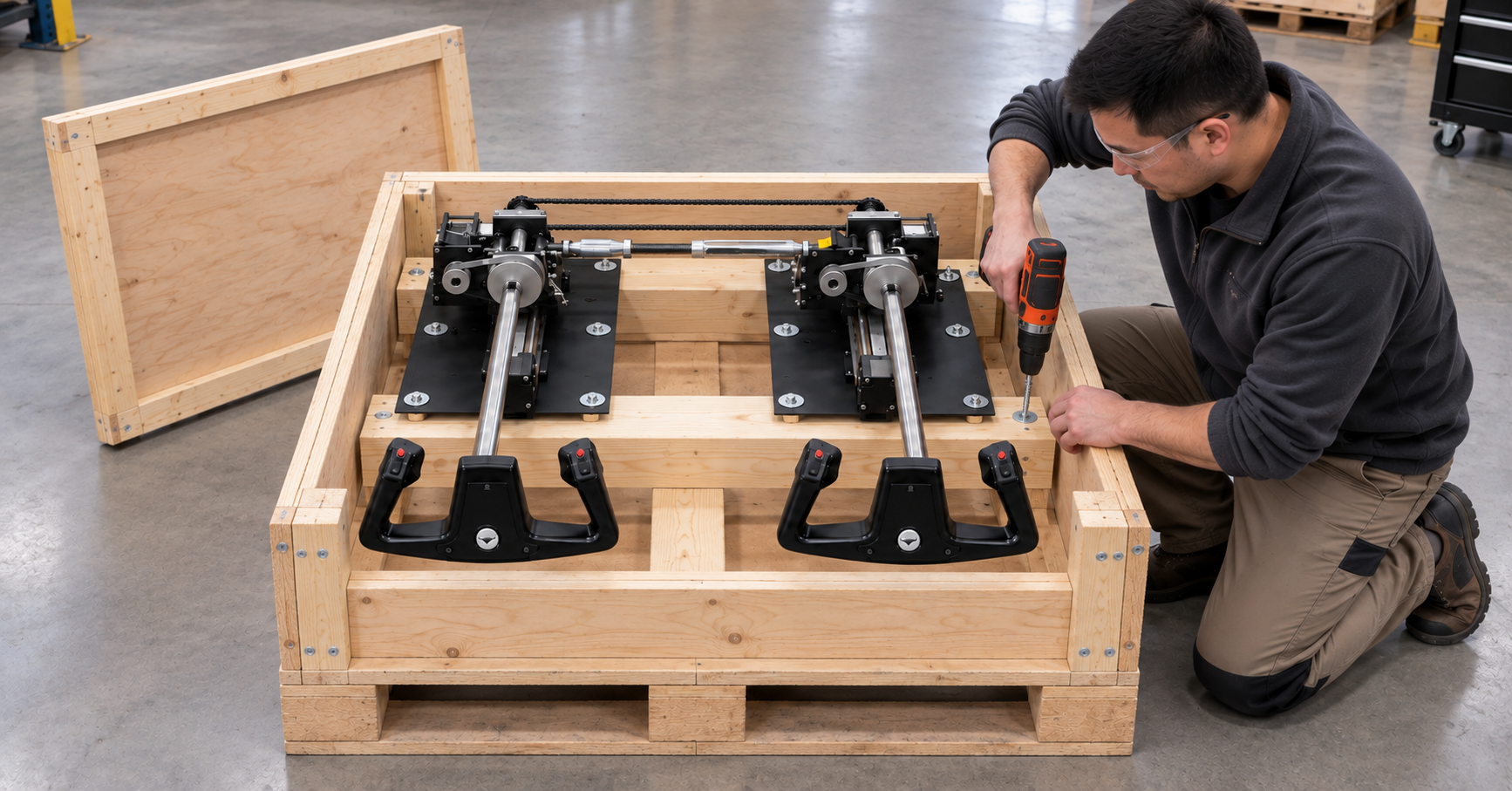

The dual-linked yokes are shipped fully assembled and secured in a larger wooden crate to prevent movement during shipping. Customers should therefore expect shipping costs to be higher than for the standard single-yoke model.

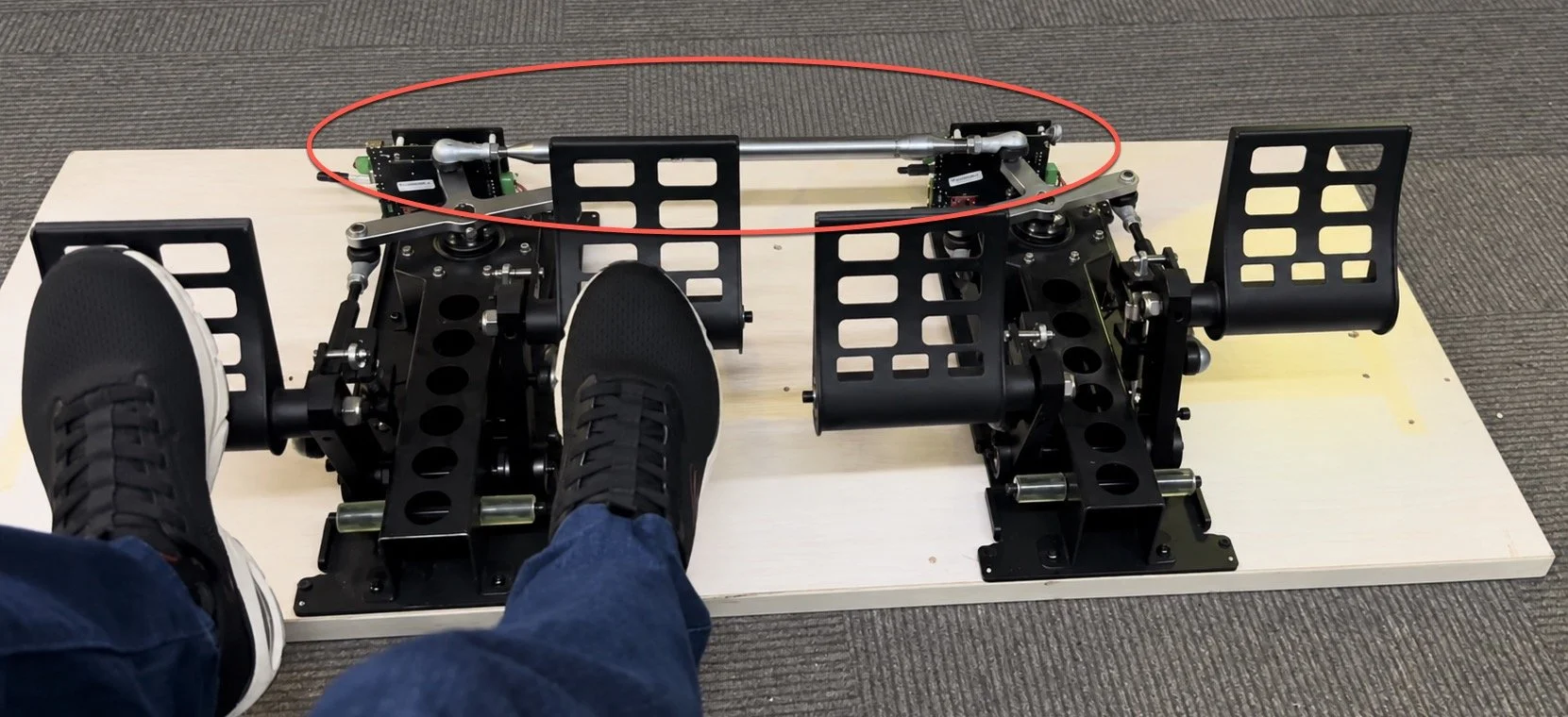

CLS-Rudder Dual-Linked Rudder Connector System
(Requires Factory Modification)
The dual-linked configuration allows two CLS-Rudder force-feedback pedal units to operate together.

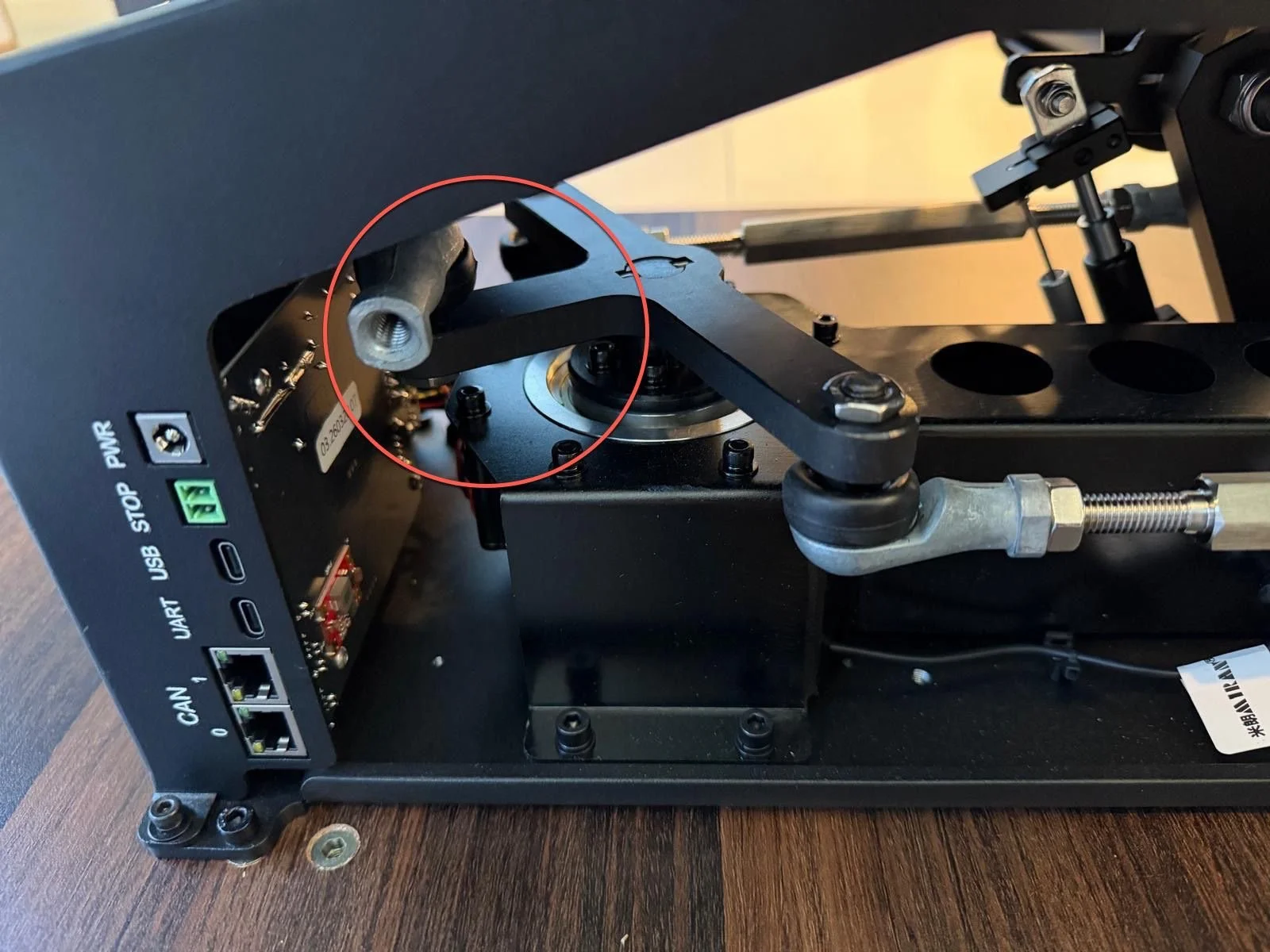

Each unit receives a custom factory-installed triple-link arm on its internal push-pull mechanism. A synchronised connector rod then mechanically links the two units, ensuring that both sets of pedals move together and deliver a coordinated force-feedback response.
This modification must be completed during manufacture and cannot be added to an existing standard CLS-Rudder unit. The dual-linked force feedback rudder pedals must therefore be ordered and purchased as new, factory-configured units.
The centre-to-centre spacing between the two pedal units can be customised from 420 mm to 620 mm to suit your simulator layout. The rudder connector rod is shipped with the two rudder pedals and is designed for easy assembly by the customer.

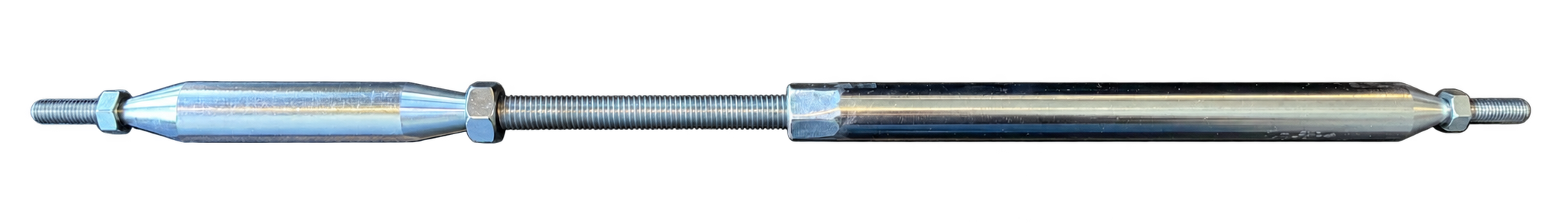

Rudder Connector Rod
